2005 Mustang V6 Roush Hood Scoop Install Part1

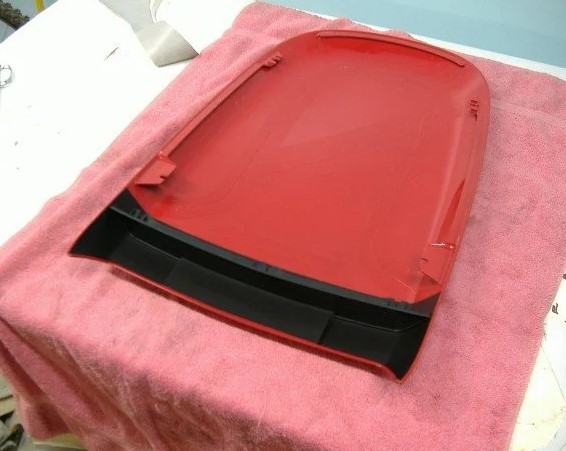

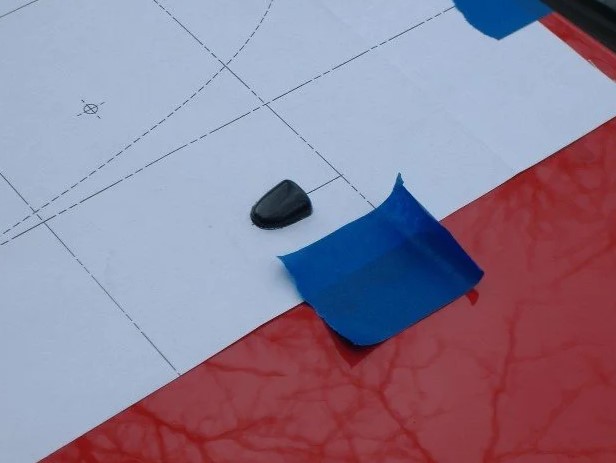

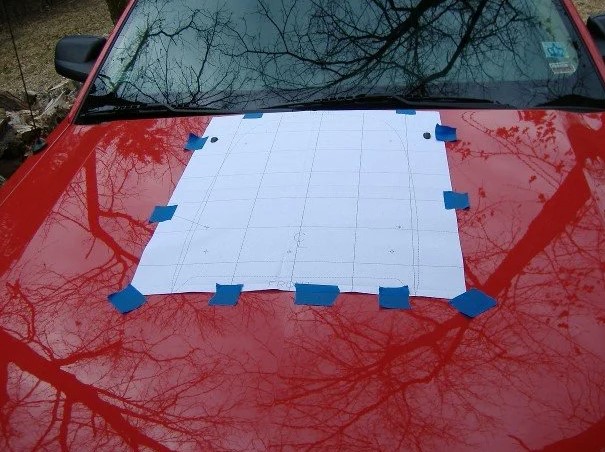

the scoop out of the box didnt look too pretty, kinda dull grey, and looked huge sitting on the living room floor. the body shop took care of that. picked the scoop up today and decided to get it on this evening. it comes with real good instructions and a nice pattern, that makes it a pretty easy install. i had the frt underside painted black and it really came out nice. cut out the pattern and got it lined up on the hood. marked the holes with the automatic punch, removed the pattern to see the damage i inflicted on my nice hood..

Part2

here i go again drilling holes in the hood. what a funny feeling that is ! i dabbed some rust inhibitor and let that dry a little. i installed the bolt clips to the scoop and test fit it with my holes, had to adjust 1 clip a little but it lined up pretty good so i marked the scoop location with some tape to make it easier to line up after i put the 2 sided tape on.

Part3

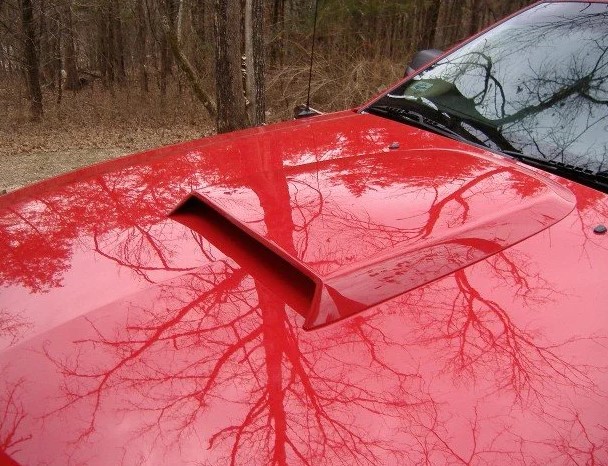

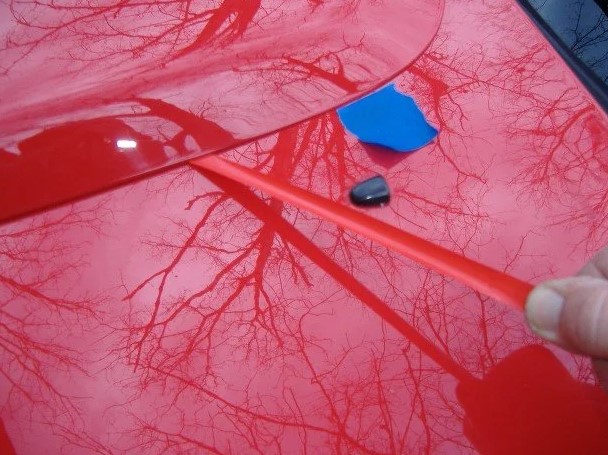

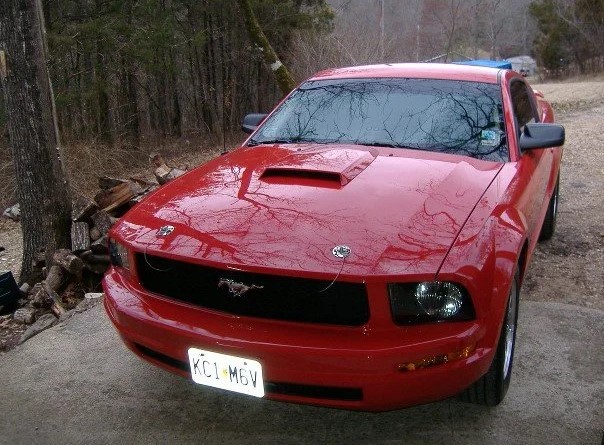

i put some black silicone gasket maker around the holes. after installing the 3 pc`s of 2 sided tape, pealed back the tape film and left a inch sticking out on each pc. set the scoop on the hood, and started all the nuts and finger tightened. pulled the tape film off the rest of the way and tightened down all the nuts. done deal :bigthumbsup
