96 ZJ MOPAR ECU Bored .030 Over Comp Cam With Video!

Performance Modifications / Engine Rebuild written by @96ZJ318 1996 Jeep Grand Cherokee (Jeep Grand Cherokee 1999)
07.05.2012

Well I'm proud to announce that after a long build period between finding time and parts, My Jeep Is DONE and Running Strong!! Pics soon I'm sorting through them, but I do have Video of the Exhaust clip at the bottom, Fully detailed build video with 0-60s and explaining everything else in the making!

Here is a list of everything I put into it and what's still stock (not for too long though :p).

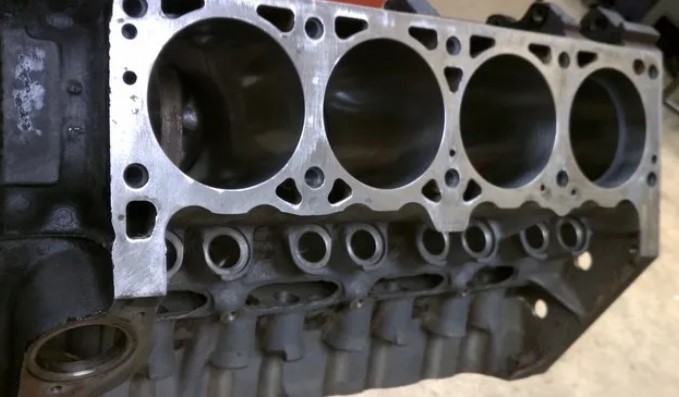

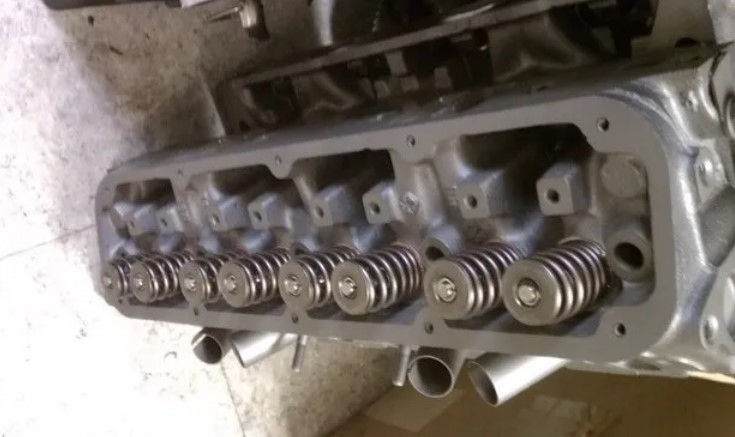

The block was decked, honed, line-honed, boiled (to remove sludge), and painted black for looks. The heads have also been painted black and fully built with new OEM springs and shims, Crane 1.6 Rockers, and Mopar Lifters have been installed. I installed a Comp Cam and all other mods are listed below:

Comp Cam 20-602-9 Specs:

Duration @ .050" Lift 206 in / 210 ex

Valve Lift .480 in .512 ex

LSA 112 degrees

Centerline 108 degrees RPM Range 800-5000

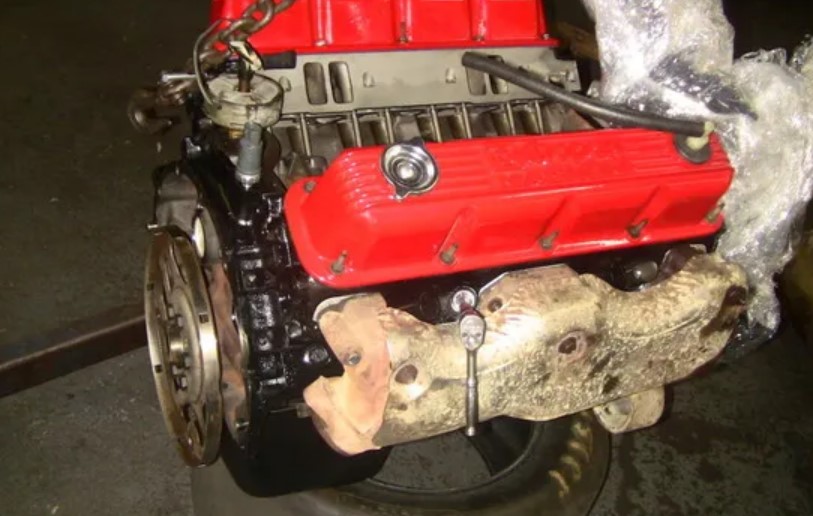

RED Mopar Magnum Valve Covers

Crane 1.6 rockers

Mopar Lifters

K&N intake

Mopar ECU

E-Cutout

Flowmaster Super 44

MSD Digital 6A Ignition Box

MSD Blaster 2 Coil

MSD 8.5mm Wires

New OEM Champion Spark Plugs (THE BEST CHOICE)

95 Taurus E-Fan replaces the clutch fan (manually controlled by a 3-way switch I wired in the dash)

Stock:

Headers, All of the 2-1/4 in. Exhaust Cat. (planning on running true duals and no cats soon)

Kegger Intake Manifold

Throttle Body (want a Holley 52mm)
