Mounted Dash Camera

Mounted Dash Camera - actually it sticks to windshield and I mounted it just to left of the rear view mirror. It is a small camera.

I ran the wiring behind the steering wheel (sort of where the up/down & telescoping mechanism is), then followed creases over to the door area and up the pillar on left side of the windshield and it sort of goes up under the head liner.

I added some grey two sided tape in some areas (just spots of it) and black gorilla tape in some areas.

Pictures - Hopefully give you an idea of the wire route and tape used.

Most of it barely shows.

Sorry they got out of sequence ( I took them in sequence going from power plug to the camera - so best to look at them in order of 1, 4, 3, 2).

Start at Power outlet over to the steering wheel area. 1st Picture.

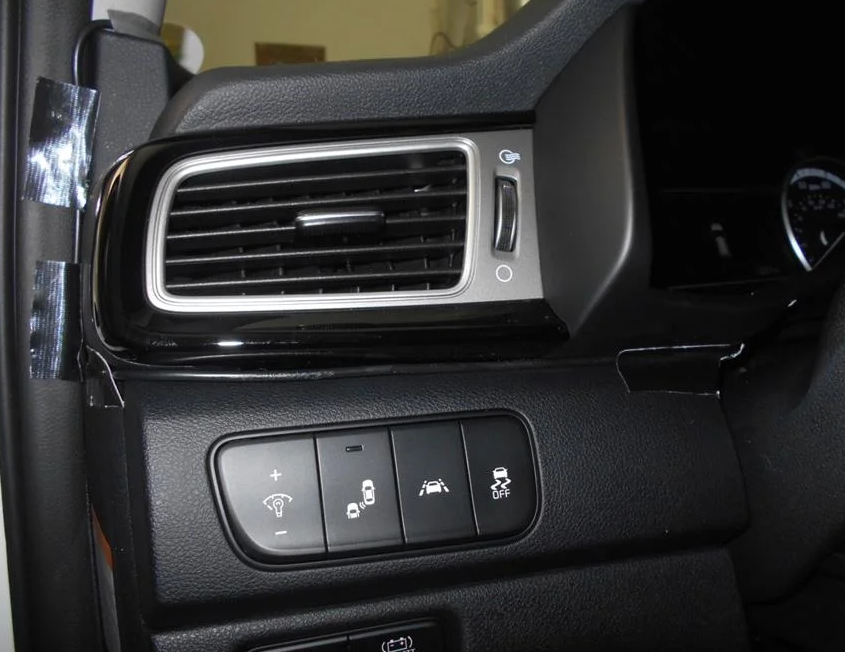

There is one coming from the steering wheel area to the door area. 4th Picture. The door closes on that black tape.

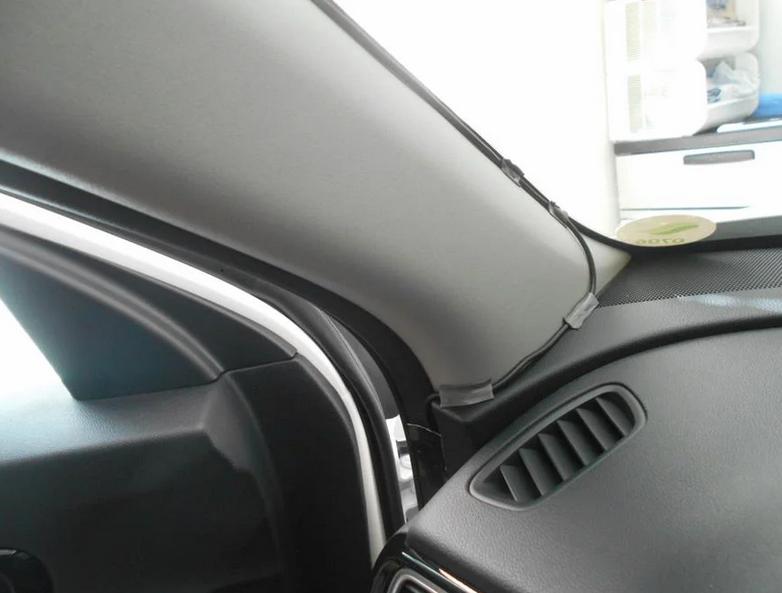

Then one at bottom of the windshield pillar. 3rd Picture. Used a grey two sided tape pieces.

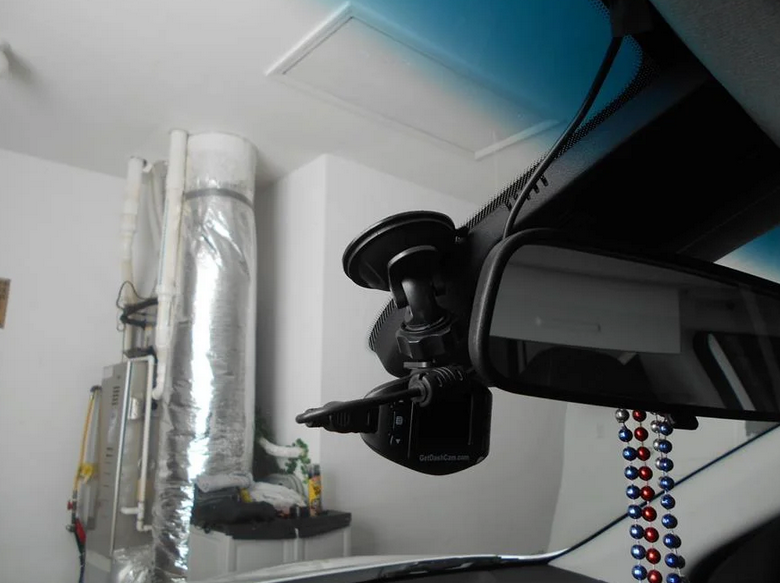

Then picture at the mirror where the camera is mounted. Wires are up behind the head liner, just pushed them in the crack.

Wish the plug for the camera was on the other side of the camera. 2nd Picture.
