Footwell lighting

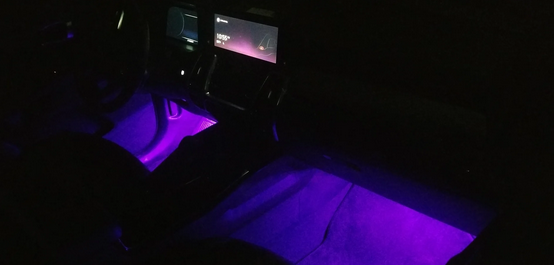

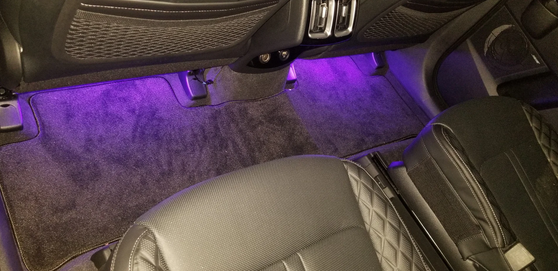

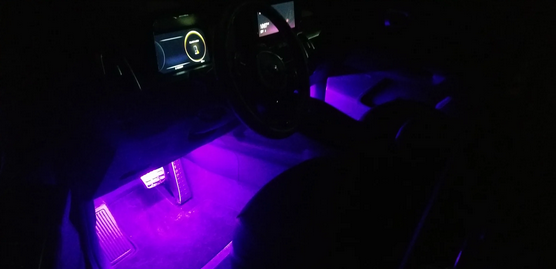

Pictures of OPT7 foot-well lighting install. The lights can be adjusted for brightness and change color via an included remote. They turn on with the car at the last setting.

The install is pretty clean. You can't see the light strips without crawling and looking for them and all the the wires are tucked behind panels.

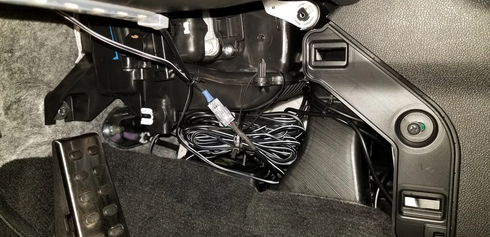

1) This center console panel (near the gas pedal)pops out from the right side and then slides right to fully detach. Once the panel is installed again, all the wires are hidden cleanly.

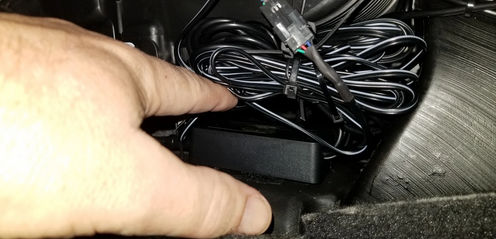

2) There is plenty of room for the control box and excess wiring to be mounted behind the removed panel. I added Velcro tape to the bottom of the control box to hold it steady and be able to remove it if needed.

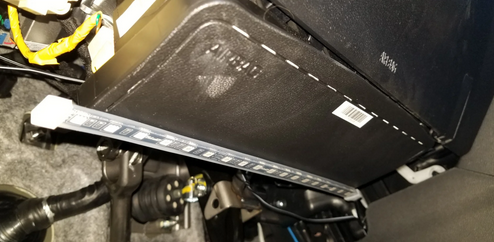

3) I used the provided 3M tape to attach the light strip for the drivers side. It's taped to the rear (non-opening) side of the Airbag device.

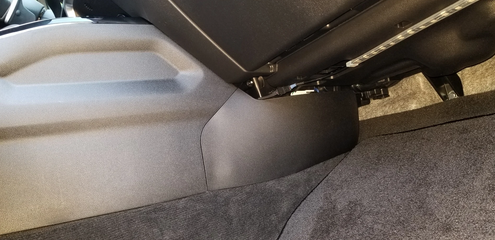

4) This is the passenger side light strip. The wire passes easily to the control box from the previous photo.

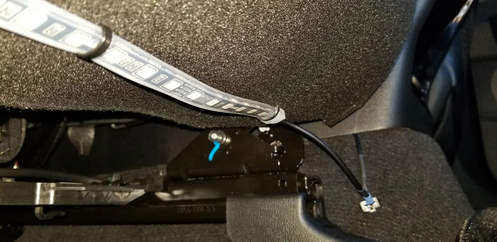

5) This is one of the rear foot-well lights. They are attached with zip ties to the carpet material that is underneath the rear of the front seats.
