MisterNuts / 05 Spec V / Oakland, CA

Gear / Vehicle Modifications written by @MisterNuts Nissan Sentra 2005
02.09.2010

Mod List:

Engine

Proline built QR25DE

Wiseco 9.5:1 forged pistons, Swaintech coated

2JR forged H-beam rods

B16 fully-counterweighted SpecV crankshaft

ATI Superdamper

JWT BSR

JWT C1 cams

2JR springs

ARP head/main studs, ARP rod bolts

AJUSA headgasket

ACL rods bearings

OEM main bearings

WPC treated pistons, wristpins, rings, and rod bearings

Turbo setup

Treadstone front-facing tubular manifold

Treadstone custom 3" downpipe

Precision Turbo 5858 ballbearing turbo with ported "S" compressor housing

Tial MVR wastegate w/dump tube

Tial Q bov

Custom 3" intercooler piping, wrinkle black powdercoat

Treadstone TR1045 intercooler

Custom 3-row half-radiator

Misc. engine

FIC 525cc injectors

Walbro 255lph fuel pump

Stromung 3" catback exhaust w/Aero 14" resonator

Ported and polished intake manifold by DPR Racing, VQ tb flange

VQ35DE 70mm throttle body

Mishimoto silicone radiator hoses

Stant low temp t-stats (170*/195*)

SPAL 14" 1800cfm radiator fan

Hondata intake manifold gasket

Modified valve cover with drilled out PCV and valve vent

ActiveTuning ground wires

Innovate LC-1 wideband

SAFCII for fun

Uprev tuned

Brisk EOR15LGS spark plugs

Suspension

TDMi drag spec coilovers, 10k

UltraRacing solid strut bar

UltraRacing room bar

Nismo front sway bar w/ES endlink bushings

Nismo rear sway bar @ full stiff

2J control arms, SuperPro 95 duro bushings

Truax Motorsports subframe connectors

Fully boxed front frame rails (welded to firewall)

2JR 10mm anti-lift kit

2JR offset delrin trailing arm bushings

2JR front delrin motor mount

FI-R rear nylatron motor mount

FI-R aluminum/nylatron crossmember inserts

Transmission

Clutchmasters 725 series twin disk clutch

Clutchmasters aluminum flywheel

ARP flywheel bolts

Prothane tranny mount with Armored's delrin spacers

Techna-fit SS clutch line

2JR short shifter

2JR Turcite X shifter bushings

Redline Heavy Shockproof tranny fluid

Wheels and Brakes

Evo VIII Brembo calipers, StopTech Street pads (street)

350Z Track 12.75" slotted rotors (street, front)

Stock calipers, Maxima rotors, Hawk HPS pads (drag)

Agency Power conversion lines

A32 Maxima rear rotors and brackets (rear)

Rays 57DR 17x9 +38 (street)

Nitto NT-01 255/40/17 (front)

Nankang NS-2R 255/40/17 (rear)

Rota Grid concave 15x8 +20 (drag)

M&H Racemaster slicks 24.5x8.5x15 (drag front)

TDMi 55mm studs all around

Muteki SR48 lugnuts

Exterior

Full 3M Matte silver wrap, gloss black roof

Nismo front lip

Nismo rear spoiler

C-mod grille

On-Star antenna

Sharkey carbon fiber roof spoiler

debadged

50% tint front, 35% rear

QuikLatch minis

Interior

Fully blacked out headliner/pillars

Redlinegoods.com leather shift boot, e-brake boot, and center console cover

Angel Eye gauge cluster/HVAC overlays

Nismo floor mats w/ 2JR floor plate

Nismo GT shift knob

Altima SE-R pedals

Autometer Cobalt boost gauge in sharkey pod

Carbon fiber vent delete with DB AFR gauge

Valentine 1 radar detector

Weight Reduction

Removed stereo system and wiring

Removed A/C system

Removed windshield washer tank and lines

Fully gutted trunk (jack, spare, carpeting, sound deadener)

Removed rear seatbelts/assorted brackets

Removed passenger airbag

Removed A/C, foglight relays and wiring

Odyssey PC680 14lb battery

Bought car new in October of '04 and started modding as soon as I hit theVboard, lol.

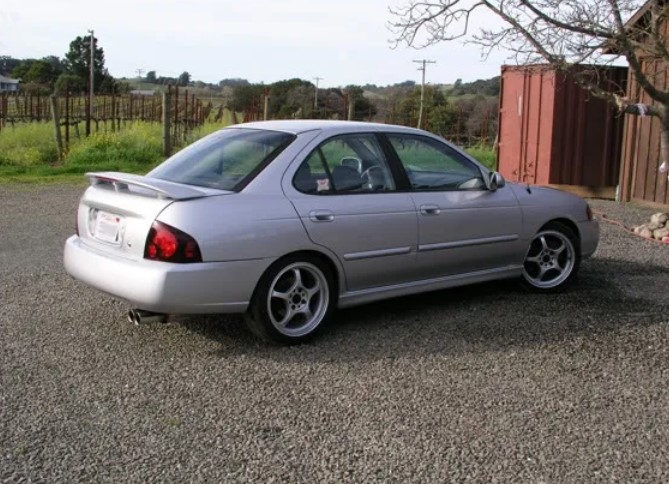

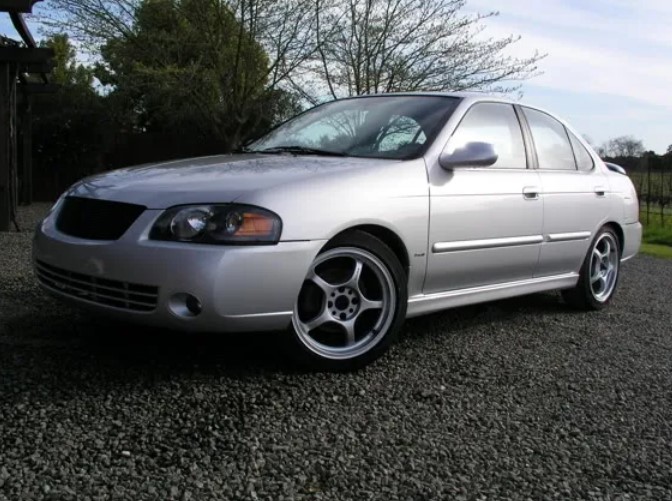

Here is is early '06, already installed mmi's, sportlines, rims, Nismo LTB and CAI, and Stromung exhaust.

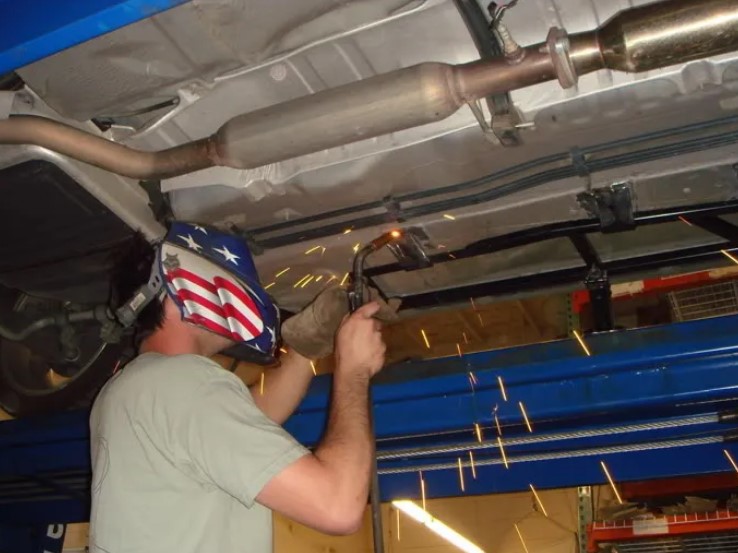

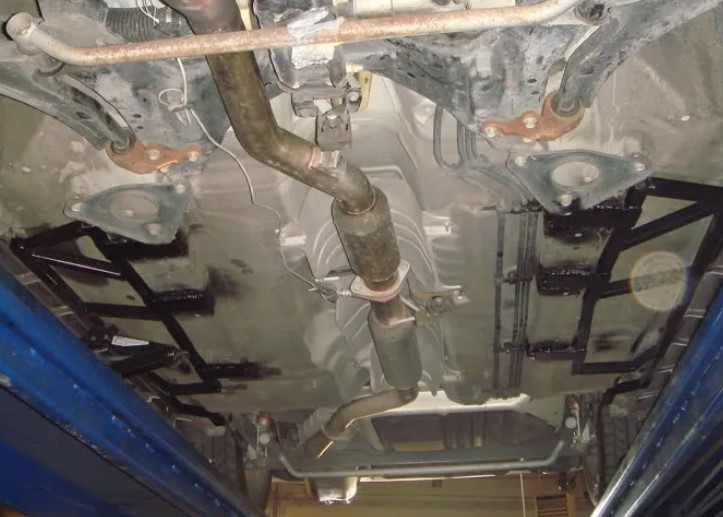

Welding TMS chassis braces. Best chassis/suspension mod evar.

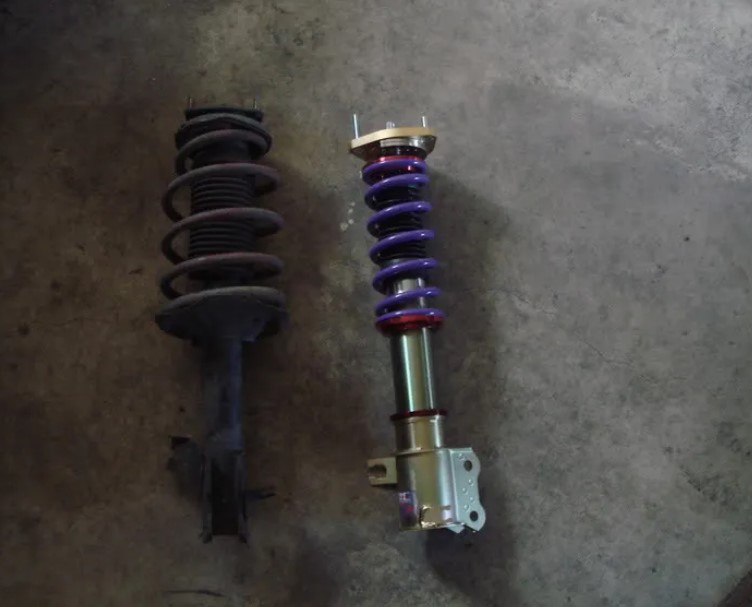

JIC FLT-A1's vs. stockers w/sportlines. Second best suspension mod.

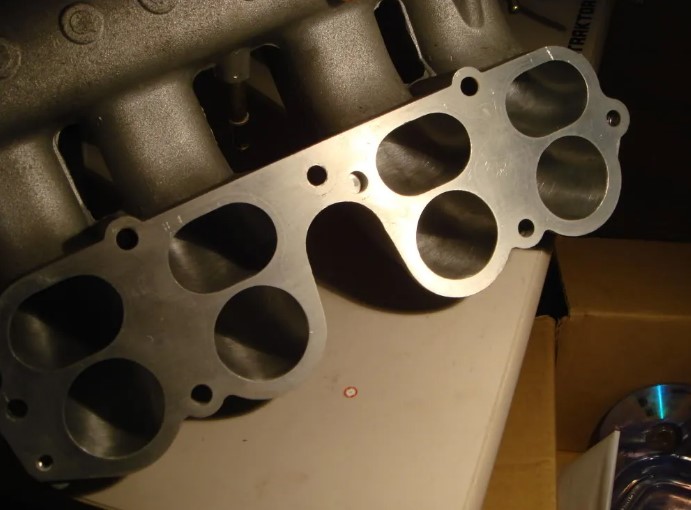

Pnp manifold. Was shaved and painted with black high temp paint. Also installed hondata intake manifold gasket with it.

Catch can is hooked up wrong BTW, don't copy me, lol.
