My wj oil and trans pan skids

Upgrades & DIY / Other DIY written by @gcjeeping Jeep Grand Cherokee 2001
10.11.2012

Had some metal left over from my belly skid so I made a oil and trans pan skids. The oil pan skid looks likes AEV's. The Trans is custom.

I also welded in a drain plug and put one of those quick release drain plugs.

I had some dents in rust on my trans pan so after I drained it I pushed the dents out, wire wheeled the rust off, Welded the drain plug in, then primed/painted it.

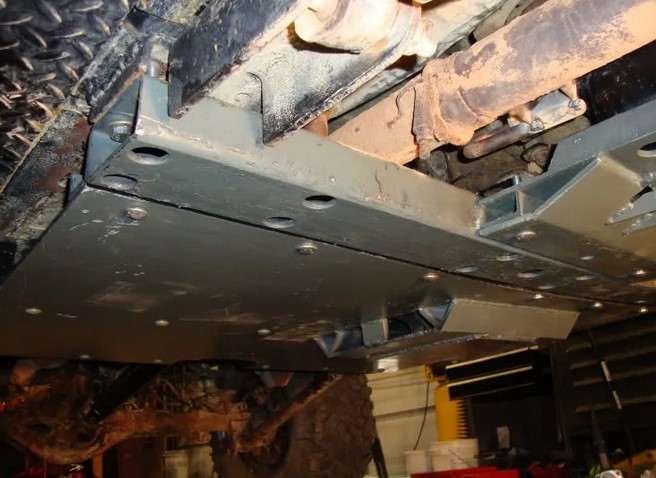

Just gotta make diff guards and the bottom should be protected.

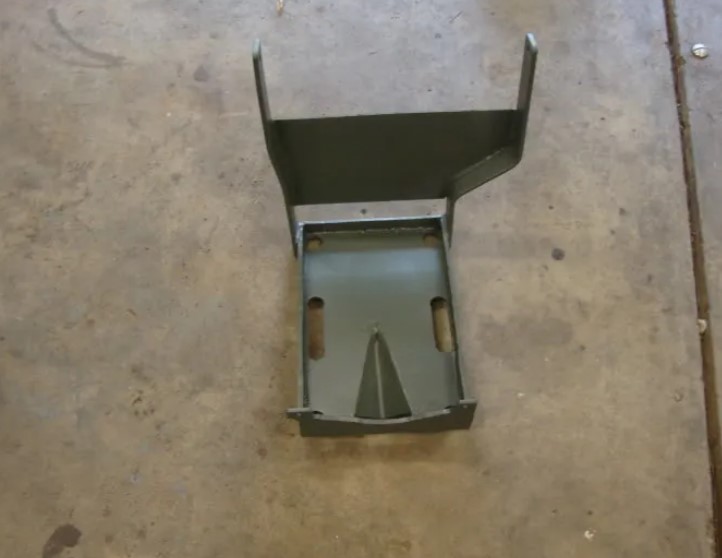

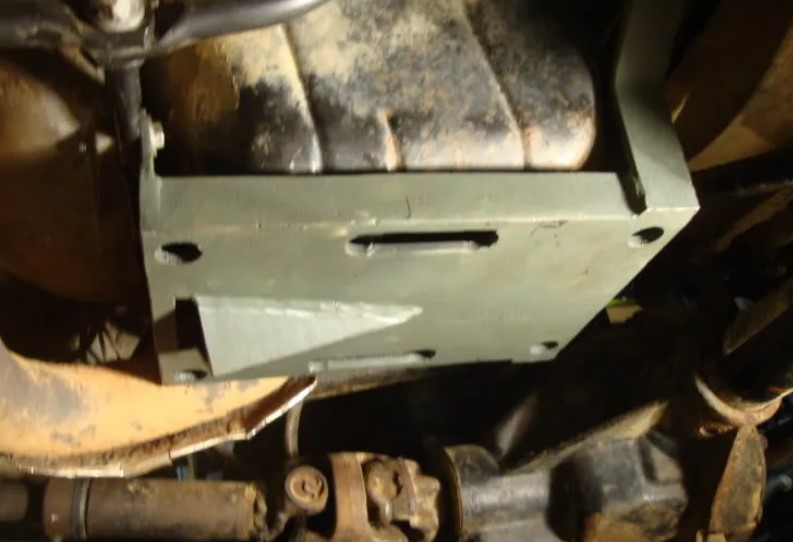

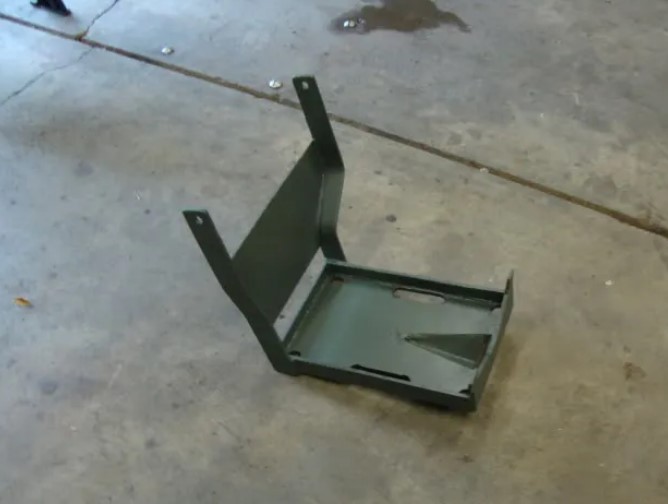

The Oil skid is bolted to the lower two flywheel shield bolts and and one on the side to existing threaded holes up on the side of the block. I notched out the part where I can get to the drain plug without removing the skid.

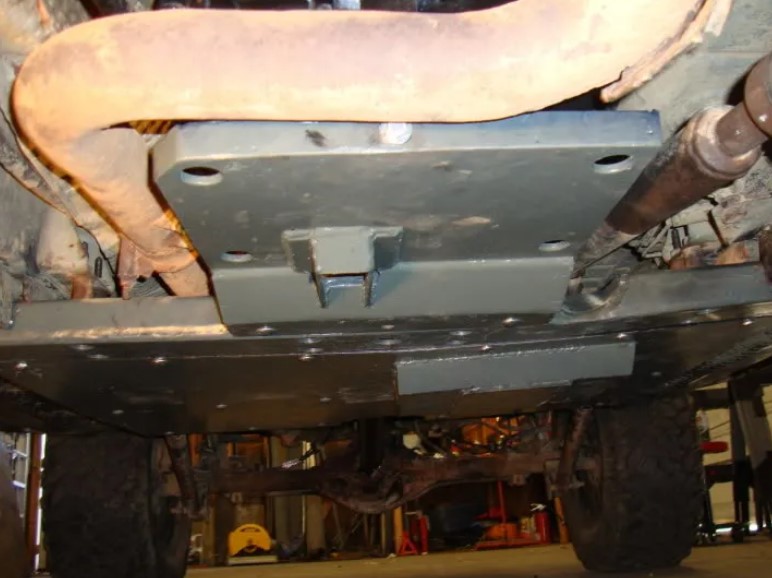

The trans pan skid sandwiches the brace I had already welded to the trans support I built before. Then it has a upright brace on the front that stops the front from getting pushed up.
